Park Mill, Bateman's Estate, The National Trust

Consultancy contract for The National Trust to supply a condition survey and technical specification. Contracted to complete repairs to waterwheel and operational machinery.

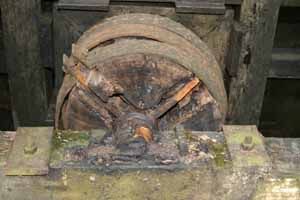

Loose and displaced gudgeon

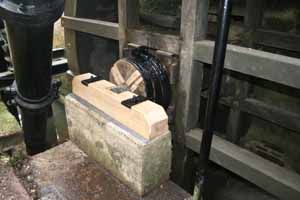

Replacement support timber and refitted bearing

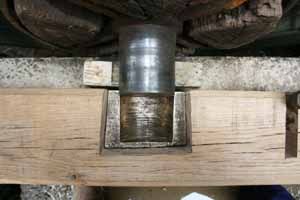

Refitted gudgeon bearing and support timber

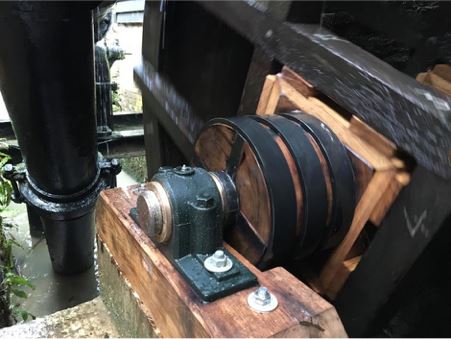

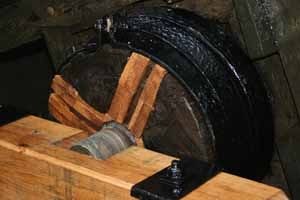

Detail of refitted axle tree bands, gudgeon and bearing

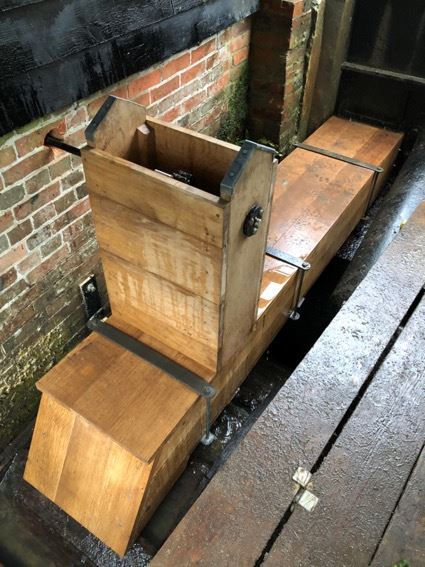

Manufacture and installation of waterwheel penstock

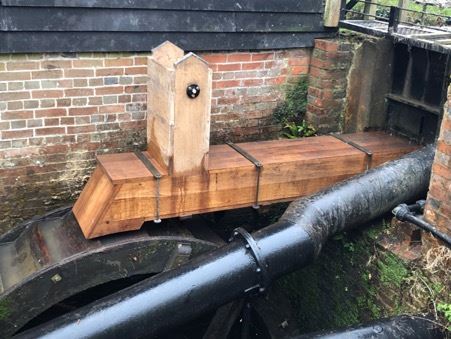

waterwheel penstock restoration

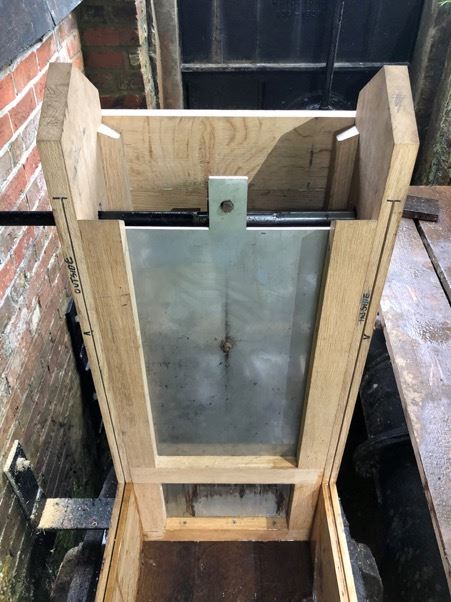

waterwheel penstock restoration

waterwheel penstock restoration


ICR was awarded by competitive tender to design, manufacture and install a replacement oak axle tree for the water wheel.
Building on a long standing conservation engineering support relationship with the National Trust ICR undertook this complex and challenging engineering project.
The existing waterwheel was suspended and supported in-situ on a bespoke scaffold while the rotten axle tree was carefully removed from the mill.

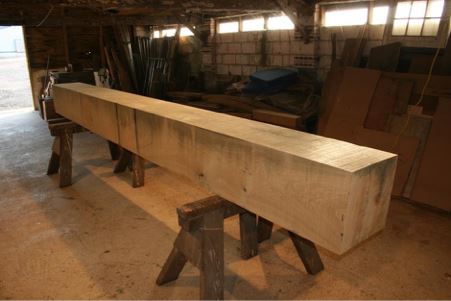

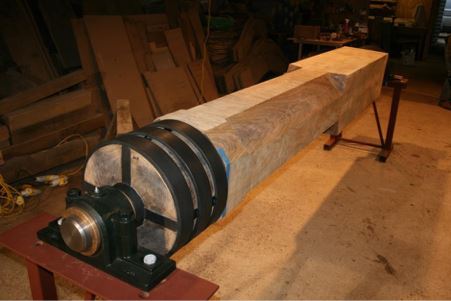

The new axle tree was constructed offsite and was finally manoeuvred into position during January 2017.

axle tree

axle tree

axle tree
